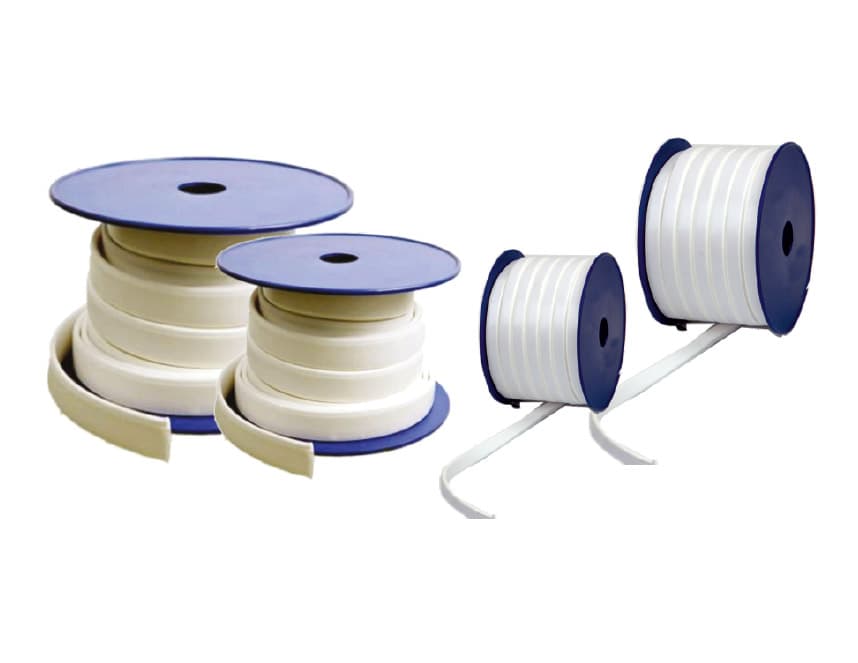

Teflon and Self-Adhesive Teflon Gasket
Teflon & Self-Adhesive Teflon Gaskets – High-Performance Sealing Elements
Teflon gaskets (PTFE gaskets) and self-adhesive Teflon gaskets are high-performance sealing elements used to provide high chemical resistance, low friction and excellent sealing at industrial pipelines, valve connections, pump bodies and various mechanical assembly points.
Product Type
PTFE Gasket / Self-Adhesive PTFE Gasket
Material
%100 PTFE (Teflon)
Application Area
Flange, pipe, valve, pump and cover connections
Temperature Range
-200°C – +260°C
Chemical Resistance
Acids, bases, solvents, oil, water
Thickness
0.5 – 3 mm
Diameter Range
10 – 600 mm
Adhesive Type (Self-Adhesive)
High-performance industrial adhesive
Teflon gaskets (PTFE gaskets) and self-adhesive Teflon gaskets are high-performance sealing elements used to provide high chemical resistance, low friction and excellent sealing at industrial pipelines, valve connections, pump bodies and various mechanical assembly points.
Since PTFE material is resistant to chemicals, high temperatures and abrasive environments, these gaskets are preferred particularly in applications involving aggressive fluids. Self-adhesive Teflon gaskets additionally offer easy positioning during application and a fast installation advantage.
✔ High chemical resistance: Resistant to acids, alkalis and aggressive fluids
✔ Wide temperature tolerance: Safe use from -200°C up to +260°C
✔ Low friction: Minimized during installation and use
✔ Easy installation (self-adhesive): Practical application with a self-adhesive surface
✔ Long service life: High-performance and durable PTFE material
| Product Type | PTFE Gasket / Self-Adhesive PTFE Gasket |
|---|---|
| Material | %100 PTFE (Teflon) |
| Application Area | Flange, pipe, valve, pump and cover connections |
| Temperature Range | -200°C – +260°C |
| Chemical Resistance | Acids, bases, solvents, oil, water |
| Thickness | 0.5 – 3 mm |
| Diameter Range | 10 – 600 mm |
| Adhesive Type (Self-Adhesive) | High-performance industrial adhesive |
HD Marine Teflon and Self-Adhesive Teflon gaskets provide effective sealing in the following applications:
- Industrial pipe and flange connections
- Chemical and petrochemical plants
- Abrasive chemical transfer lines
- Shipboard marine systems
- Processes requiring high temperature/chemical resistance
These gaskets provide reliable and long-lasting sealing, particularly in circuits where chemicals are conveyed.
What is a Teflon gasket?
A Teflon gasket is a sealing element made from PTFE material, providing high chemical resistance and low friction.
What is a self-adhesive Teflon gasket used for?
The self-adhesive Teflon gasket is designed for easy positioning on slippery surfaces during installation and fast setup.
In which applications is it preferred?
It is preferred in chemical plants, pipe flanges, valve connections, pump bodies and aggressive fluid circuits.
What is the temperature resistance of a Teflon gasket?
Teflon gaskets are durable across a wide temperature range from -200°C to +260°C.
