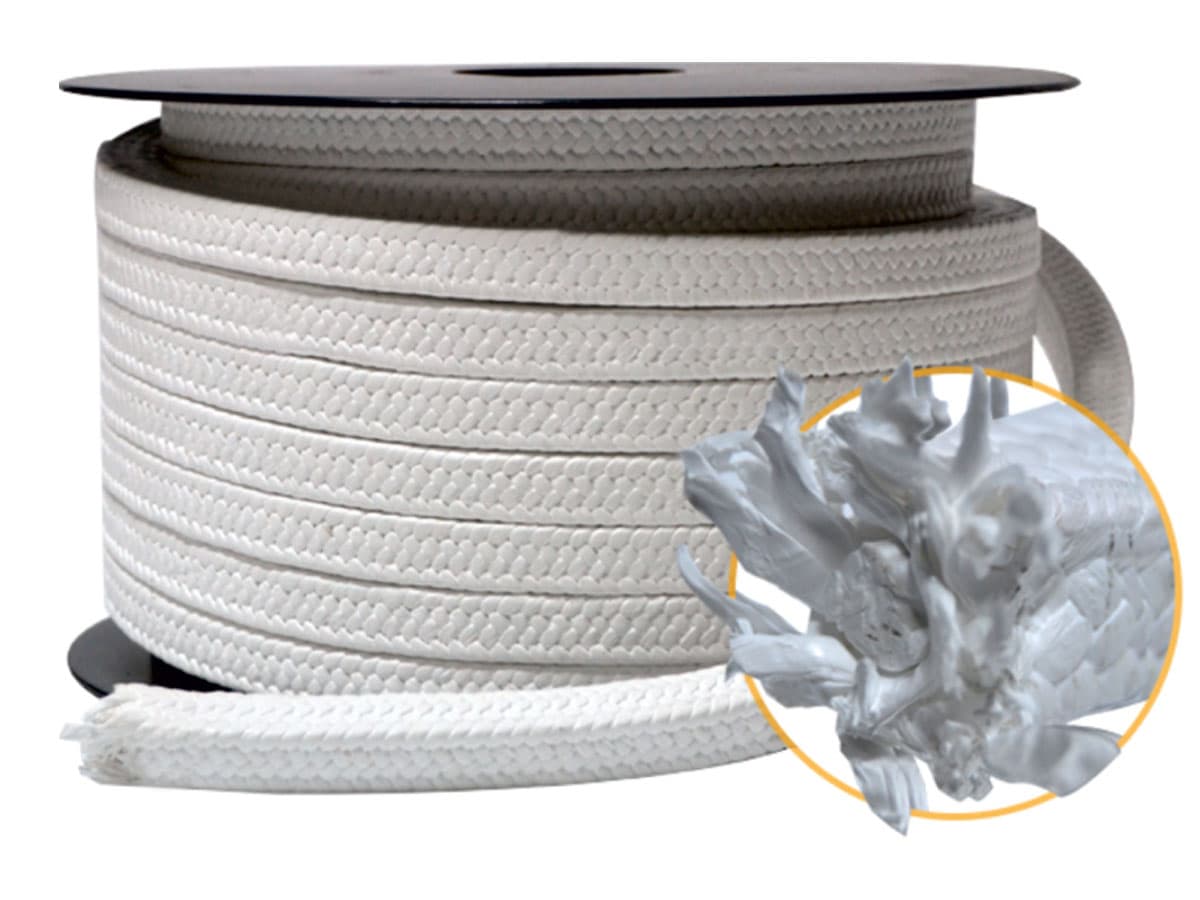

Soft Packings
High Sealing Performance and Durability
Soft packings are elastic sealing elements that provide sealing and mechanical isolation by closing the gap between the shaft and the housing. They are widely used in pipeline systems, pumps, valves, rotor shaft connections and industrial mechanisms to prevent leaks of water, oil, fuel and various fluids.
Product Type
Soft Packing
Material
PTFE / PURE GRAPHITE / ARAMID / ZEBRA
Application Area
Pump, valve, shaft sealing
Inner Diameter Range
10 mm – 200 mm
Operating Temperature
-40°C – +120°C
Pressure Resistance
0,5 – 10 bar
Chemical Resistance
Water, oil, fuel, solvents
Hardness (Shore)
60 – 90 A
Soft packings are elastic sealing elements that provide sealing and mechanical isolation by closing the gap between the shaft and the housing. They are widely used in pipeline systems, pumps, valves, rotor shaft connections and industrial mechanisms to prevent leaks of water, oil, fuel and various fluids.
HD Marine soft packings deliver long-lasting performance with their flexible structure, high chemical compatibility and durable material.
✔ Superior sealing: Effectively prevents liquid and gas leaks
✔ Flexible and conformable: Full seating on the shaft surface and stretching capability
✔ Chemical resistance: Resistance to water, oil, fuel and mild chemicals
✔ Low friction: Minimizes wear
✔ Easy installation: Practical and fast setup
| Product Type | Soft Packing |
|---|---|
| Material | PTFE / PURE GRAPHITE / ARAMID / ZEBRA |
| Application Area | Pump, valve, shaft sealing |
| Inner Diameter Range | 10 mm – 200 mm |
| Operating Temperature | -40°C – +120°C |
| Pressure Resistance | 0,5 – 10 bar |
| Chemical Resistance | Water, oil, fuel, solvents |
| Hardness (Shore) | 60 – 90 A |
| Mounting Type | Split / One-piece / Two-piece |
HD Marine soft packings provide sealing and long-life performance particularly in:
- Industrial pump and valve shafts
- Pipelines and process circuits
- Marine and shipping applications
- Engine rooms and mechanical systems
- Pressurized system connections
and similar operations.
What is a soft packing?
A soft packing is a flexible sealing element that prevents liquid or gas leaks by closing the gaps between the shaft and the hub.
From which materials is it made?
It is generally produced from NBR, Viton, neoprene or elastomer compounds; the choice depends on the application.
Where is it used?
It is used on pump shafts, valves, rotor connections and process piping.
What is its temperature resistance?
Depending on the material, it can withstand temperatures in the range of -40°C to +120°C.
