Pipe Repair Bandage
A Practical and Permanent Repair Solution
A pipe repair bandage is an after-production repair bandage used to quickly repair damage such as cracks, tears or abrasions in pipelines. Thanks to its elastic and durable structure, it enables pipes that will not close, are leaking or have been damaged to return to service in a short time.
Product Type
Pipe Repair Bandage
Use
Pipe damage repair and reinforcement
Suitable Pipe Diameter
25 – 250 mm
Material
Epoxy Resin + Fiberglass
Resistance
High mechanical and chemical resistance
Max. Operating Pressure
10 – 25 bar
Operating Temperature
-20°C – +300°C
Application Time
5 – 30 min (curing)
A pipe repair bandage is an after-production repair bandage used to quickly repair damage such as cracks, tears or abrasions in pipelines. Thanks to its elastic and durable structure, it enables pipes that will not close, are leaking or have been damaged to return to service in a short time.
HD Marine pipe repair bandages offer an effective repair solution in marine, industrial and infrastructure applications with their high strength, corrosion resistance and long service life.
✔ Fast application: Applied practically by wrapping
✔ Durable material: High strength with fiberglass + epoxy
✔ Suitable for various pipe diameters: Use from 25 to 250 mm
✔ High pressure resistance: Suitable for industrial facilities
✔ Corrosion resistance: Resistant to fluids such as water, oil and chemicals
🛠️ Where Is It Used?
HD Marine pipe repair bandages provide reliable and fast solutions for leak and damage repair particularly in:
- Water and wastewater lines
- Fuel and oil transfer pipes
- Industrial process lines
- Marine and engine room applications
- Chemical line repairs
and other different sectors.
| Product Type | Pipe Repair Bandage |
|---|---|
| Use | Pipe damage repair and reinforcement |
| Suitable Pipe Diameter | 25 – 250 mm |
| Material | Epoxy Resin + Fiberglass |
| Resistance | High mechanical and chemical resistance |
| Max. Operating Pressure | 10 – 25 bar |
| Operating Temperature | -20°C – +300°C |
| Application Time | 5 – 30 min (curing) |
| Chemical Resistance | Oil, fuel, solvents, water, air, chemicals |
What is a pipe repair bandage?
A pipe repair bandage is a reinforcement bandage used to repair cracked or damaged pipelines in a practical and durable way.
For which pipe diameters is it suitable?
Thanks to bandages of various widths, it can be used on pipe diameters from 25 mm up to 600 mm.

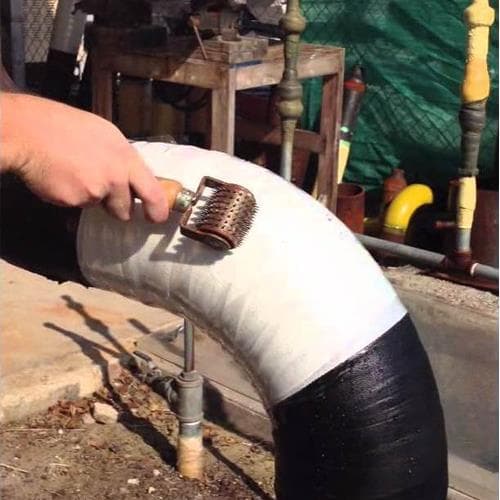

How is it applied?
After the damaged area is cleaned, the bandage is wrapped and pressure is applied over it; it hardens in a short time.
On which pipe types can it be used?
It can be used safely on water, oil, fuel and most industrial fluid lines.
